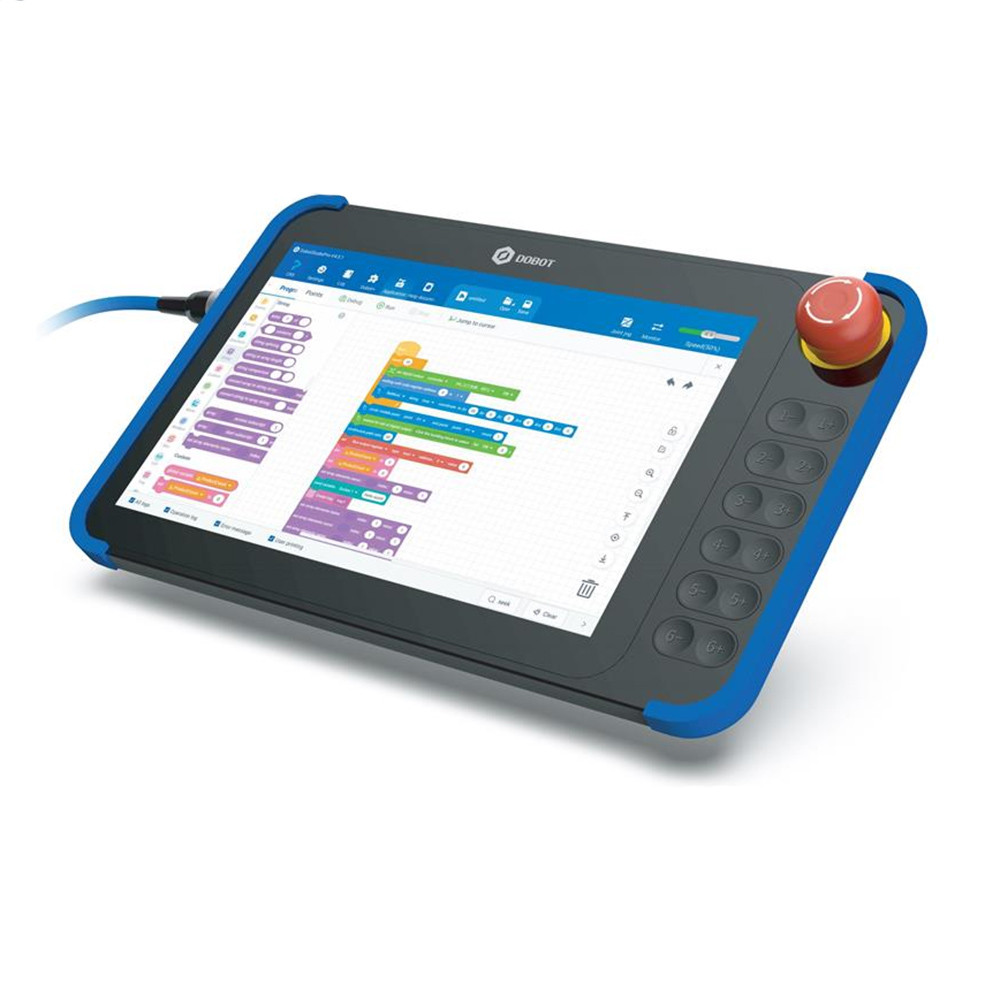

DOBOT SMARTPENDANT TP10
Wired programming console for DOBOT CRAS and CRA series industrial collaborative robots
VIDEO
The CRA series collaborative robots feature a lightweight design that seamlessly integrates aesthetics and ergonomics for a comfortable grip. Equipped with physical buttons and a large screen, they offer intuitive and effortless operation. With hot-swappable functionality, they combine safety and flexibility to deliver an exceptional user experience.
Enhanced Control and Flexibility
Multiple Buttons for Effortless Operation 3-Position Switchgear : Configurable for 3-position enable or drag-and-drop mode , enhancing safety and control.12 Physical Pushbuttons : Enables more flexible teaching operations, significantly improving debugging efficiency.Superior Safety and Reliability
High Protection Standards : Designed for maximum safety and reliability.ISO Standard Safety Certification : Ensures compliance with international safety standards.Intuitive, High-Definition Display
10.1-Inch Ultra-HD Capacitive Screen : 1920 × 1280 Resolution for crystal-clear visuals.High-performance chip ensures smooth, lag-free operation . Multitouch support for a seamless user experience.Vibration & Buzzer Alerts : Provides tactile and audible feedback for easier recognition. Enhances usability with a rich, intuitive experience.
Parameters
Device Parameters
Product Model
Smartpendant TP10
L*W*H (excluding emergency stop)
249*184*43mm
Weight
1,09kg
IP rating
IP54
Standard Cable lenght
4,5m
Temperature of working environemnt
0~50°C
Relative humidity of working environment
up to 90% (no condensation)
Material
PC + ABS
Screen
Size
10:1 inch
Resolution
1920*1200@60Hz
Touch screen
Capacitive touch screen, multi-touch control
Operating system
Android 12
Communication interface
2 USB 2.0; 1 Type-C; 1 Ethernet interface
Buttons
12 pushbuttons; 1 power button; 1 emergency stop switch; 1 3PS
