The Pre900 is built around a four-channel, fully balanced architecture. This means the unit does not merely use XLR connectors, but the internal signal path is also differential throughout, from the input all the way to the output.

The physical and electrical separation of the left and right channels reduces crosstalk, lowers noise and helps keep electromagnetic interference away from the signal. In practice, this results in a more stable stereo image, more precise positioning and the clean, calm background that is especially important in high-resolution systems.

The digital and analog circuits receive separate power supplies, which is one of the most important design elements for noise reduction. As a result, interference from digital control, the display or switching logic is less likely to enter the sensitive analog signal processing stage.

This is especially important with highly dynamic music, where quiet details and powerful transients alternate rapidly. The Pre900 is designed to keep the background silent while preserving the music's fine details, textures and spatial information with clarity.

The Pre900's volume control uses a relay switching network and high-precision resistors. The system offers 1000 adjustable steps, allowing fine and controlled volume management. This is particularly useful when used with a sensitive power amplifier, active loudspeakers or a high-resolution system, where large volume jumps can be disruptive.

The advantage of the relay-based solution is that the sound character does not meaningfully change while adjusting the volume. The goal is for only the signal level to change, not the tonal balance, spatial presentation or channel balance. The -150 dB channel crosstalk specification indicates that the left and right channels are separated with exceptional precision, which also supports the stability of the stereo image.

The Pre900 can deliver an output signal level of up to 69 Vpp, while the maximum gain is 19.9 dB. This provides substantial headroom, meaning the device can pass the signal on stably even during powerful transient peaks, without distortion or clipping.

This is not only important as a technical specification. The audible result of the large dynamic reserve may be a freer, tighter and more controlled presentation, especially in systems where the power amplifier or active loudspeaker can take advantage of a precise, high-level preamplifier signal.

The unit offers three gain modes: low, medium and high. The low setting provides 0 dB gain, the medium setting provides +10.4 dB, and the high setting provides +19.9 dB.

This allows flexible matching with different system configurations. With a DAC that has a high output level or a sensitive power amplifier, low gain may be ideal, while a source with lower signal level or a chain requiring greater drive may benefit from medium or high gain. The aim is to keep the volume range practical while also optimizing the system's noise level and dynamics.

The Pre900 provides three pairs of stereo balanced inputs with XLR and 6.35 mm TRS combo sockets. The Neutrik connectors ensure a stable, professional-quality connection, making the unit well suited not only to home Hi-Fi systems, but also to studio or semi-professional environments.

The multiple inputs allow several source components to be connected, such as a DAC, streamer, studio interface or other device with balanced outputs. Input switching can be controlled from the unit itself or via the remote control.

The Pre900 is equipped with one pair of balanced XLR preamplifier outputs. The design concept here is not to provide as many outputs as possible, but to achieve the cleanest, shortest and most optimized signal path.

This configuration is suited to systems where a dedicated power amplifier, active loudspeaker or additional balanced analog device receives the signal. The 100 ohm output impedance ensures stable matching, while the fully balanced output stage helps preserve signal integrity even with longer cable runs.

Safe Volume Mode uses a user-defined safe volume level. When powering on or switching inputs, the unit automatically reduces the signal level to the specified volume, helping prevent unexpectedly loud playback.

This is not only a convenience feature, but also helps protect the loudspeakers, the power amplifier and the listener. The safe volume level can be set between -80.0 dB and 0.0 dB, with the default value set to -30.0 dB.

The front panel of the Pre900 features a 2.0-inch high-resolution color display. The display offers nine selectable background colors, allowing the appearance to be matched to the system or the user's preference.

Operation is handled by the multifunction volume knob, the touch buttons on the right side and the infrared remote control. The display can switch between different views, such as playback information, FFT spectrum or VU meter. This function is not only visually striking, but also helps provide a quick overview of the system status.

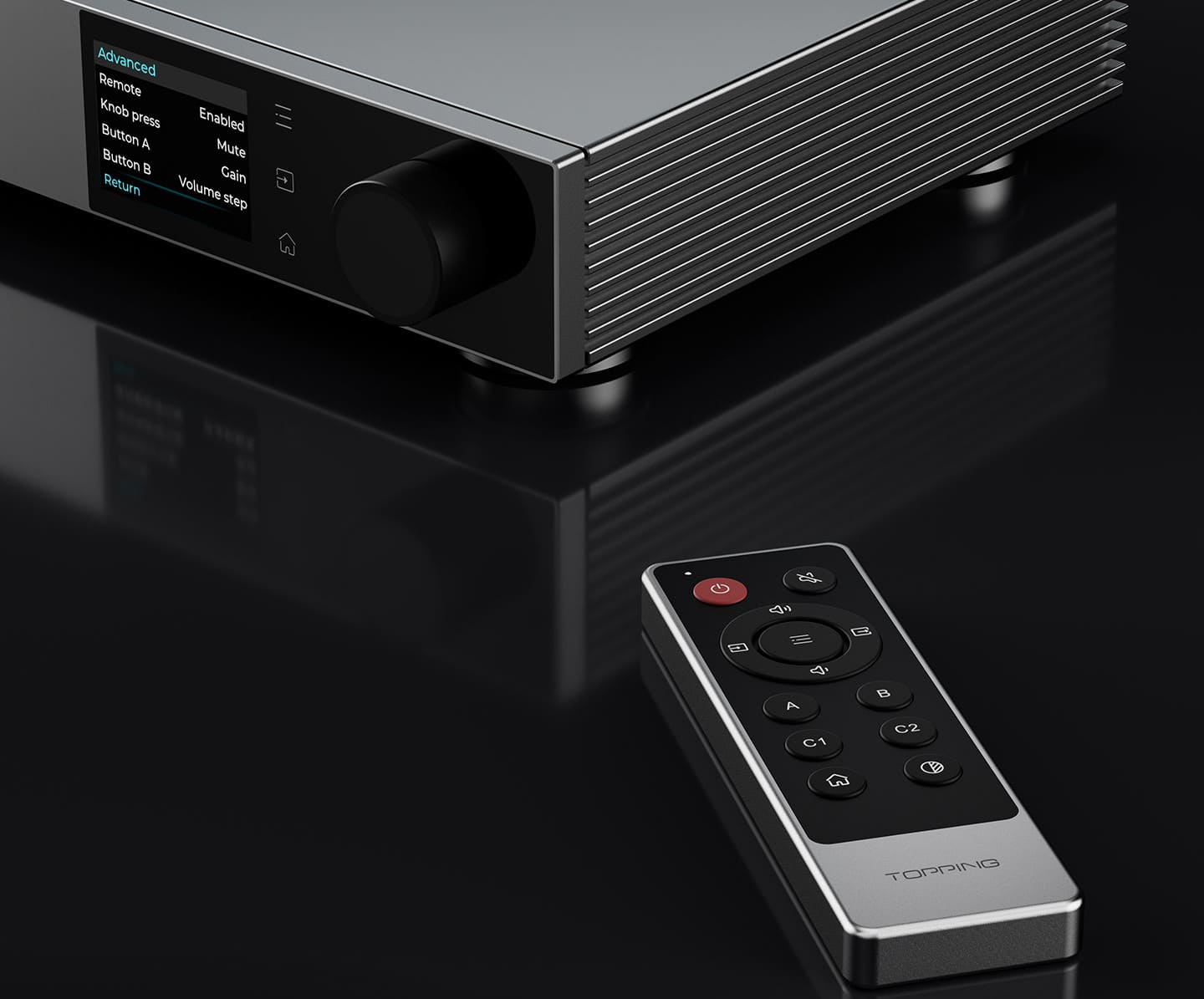

The main body of the included infrared remote control is made from a single block of high-strength aluminum alloy, machined with precision CNC processing. The fine sandblasted finish matches the device's premium technical character.

The remote control provides convenient access to the most important functions, such as volume, input selection and display views. This is especially practical when the Pre900 is placed not directly on a desk, but on a Hi-Fi rack or within a larger system.

The appearance of the Pre900 follows the design language of the TOPPING 900 Series. Its lines are clean, restrained and technical in character, allowing it to fit naturally into modern desktop Hi-Fi systems.

The device measures 33.0 x 20.0 x 5.7 cm, so it is more compact than many traditional Hi-Fi preamplifiers, yet its proportions and appearance still convey the impression of a premium system component. Together with the D900 and A900, it can form a visually coherent flagship stack.
