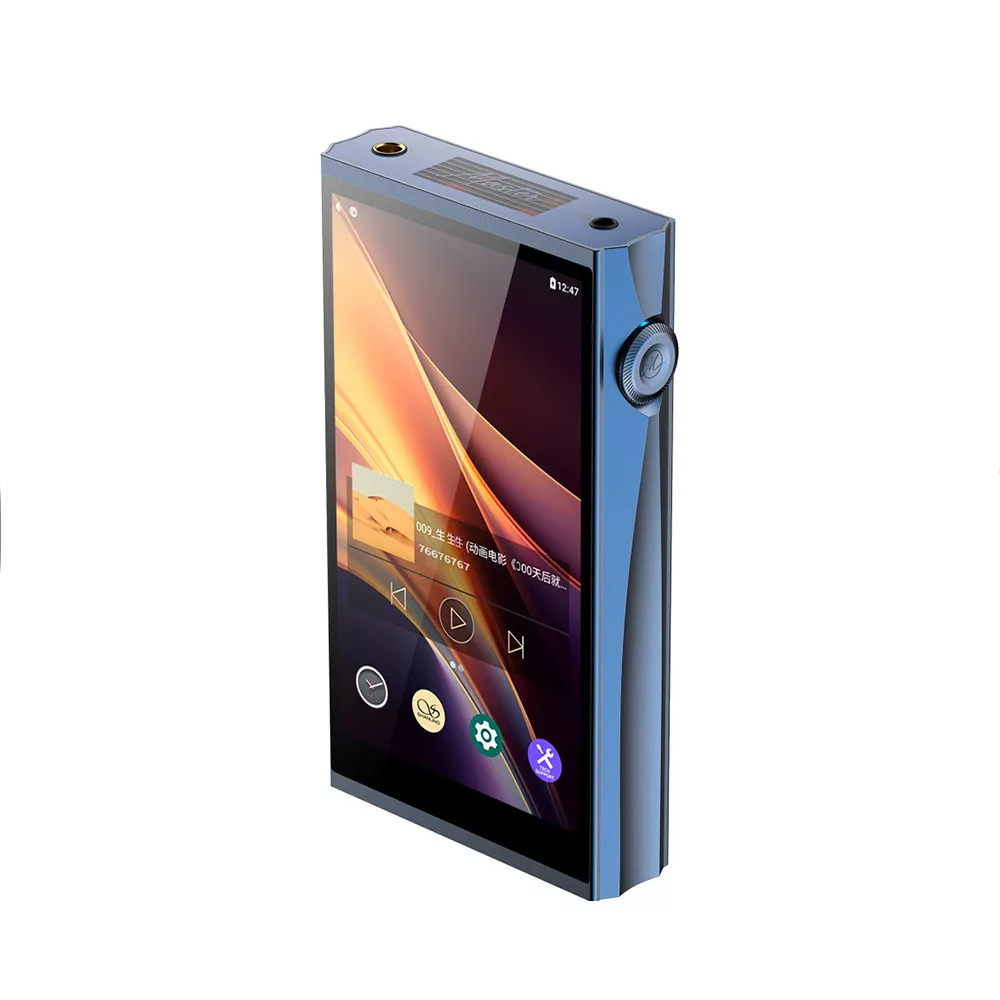

NEW SHANLING M7T MASTER - Portable Audio Player with Tube Amplifier WiFi Bluetooth 5 LDAC 32bit 768kHz DSD1024 - Blue

Name: SHANLING M7T MASTER - Portable Audio Player with Tube Amplifier WiFi Bluetooth 5 LDAC 32bit 768kHz DSD1024 - Blue
Brand: Shanling
SKU: SH-M7T-MSTR-BLUE
Price: 1109.45 EUR
Availability: InStock

Item number: SH-M7T-MSTR-BLUE

NEW SHANLING M7T MASTER - Portable Audio Player with Tube Amplifier WiFi Bluetooth 5 LDAC 32bit 768kHz DSD1024 - Blue

Item number: SH-M7T-MSTR-BLUE

AVAILABLE FOR ORDER

Delivered to you within 10-16 days

1 109,45 Eur _{incl. VAT / 901,99 Eur excl. VAT}

Points earned after purchase: 110,94 Eur

The SHANLING M7T MASTER is an Android 13 portable Hi-Res music player designed for both local music libraries and installed streaming applications. Its 5-inch Sharp display, Snapdragon 665 processor, 6GB RAM and 128GB internal storage provide a fast, clear user experience.

Dual AKM AK4498EX DACs with the AK4191 modulator handle precise digital-to-analog conversion, while tube and transistor modes offer two distinct amplifier profiles. The 3.5mm single-ended and 4.4mm balanced headphone outputs use three gain settings, with up to 1020mW at 32 ohms from the balanced output in transistor mode.

The 7000mAh battery provides up to 14.5 hours of single-ended or 12.5 hours of balanced playback. Two-way Bluetooth, 2.4GHz and 5GHz Wi-Fi, MicroSD expansion and the 3.5mm coaxial digital output enable flexible system connectivity.

Exact color

Ultimate Grey

Mocha

Blue

Gift

Details
Data
Reviews

REFERENCE PORTABLE MUSIC PLAYER WITH SELECTABLE TUBE AND TRANSISTOR SOUND MODES

SHANLING M7T MASTER

The SHANLING M7T Master is an open Android 13 portable music player that combines dual AKM AK4498EX and AK4191 digital-to-analogue conversion with two JAN6418 miniature tubes and a separate transistor amplification path. Its 3.5mm and 4.4mm headphone outputs, three gain settings, two-way Bluetooth and Wi-Fi streaming are brought together in a single reference-class aluminium device.

2 × AK4498EX + AK4191JAN6418 tube or transistor modeUp to 1020 mW at 32 ΩAndroid 13 with open app installation

SHANLING M7T Master portable Android music player

WHY MASTER?

The M7T Master is not a successor in a new form factor, but a further refined version of the original M7T. Shanling revisited power-supply control, selected capacitors and the fine tuning of the AK4498EX DAC system, then voiced the result for a fuller presentation that still retains a neutral focus.

The Master version employs single-crystal copper conductors in its internal audio signal path, adds three gain settings and raises the specified maximum balanced output to 1020 mW at 32 ohms. Its engraved M emblem and frosted-glass top panel clearly distinguish the M7T Master from the previous version.

SHANLING M7T Master refinements compared with the previous M7T — The M7T Master retains the proven dimensions, platform and key functions of the original M7T while advancing its tuning and power reserve.

SHANLING M7T Master dual AKM AK4498EX DACs and AK4191 modulator — The AK4191 delta-sigma modulator works with two AK4498EX digital-to-analogue converters in a balanced audio architecture.

DUAL AKM DIGITAL-TO-ANALOGUE CONVERSION WITH SHANLING REFERENCE TUNING

At the centre of the M7T Master DAC system are the AKM AK4191 modulator and two AK4498EX converters. The dual DACs operate in a differential configuration, which Shanling develops further through the reference-tuning approach established with the earlier M7.

For local playback, the player handles PCM files up to 32-bit/768kHz and native DSD1024. In USB DAC mode, support extends to PCM 384kHz/32-bit and DSD256. Its in-house FPGA solution, Japanese KDS active oscillators at 90.3168MHz and 98.304MHz, and Shanling's fourth-generation algorithm are designed for accurate digital timing.

TWO JAN6418 TUBES, TWO SELECTABLE MUSICAL APPROACHES

The two low-voltage JAN6418 tubes are mounted in a dedicated anti-shock suspension intended to reduce microphonics during portable use. They are not permanently active: they form part of the user-selectable tube sound mode and automatically switch off after 10 minutes of inactivity.

In tube mode, the M7T Master is voiced by the manufacturer for a warmer timbre and softer edges. In transistor mode, the traditional op-amp-based amplification path focuses on clarity and direct detail retrieval. The installed tubes have an estimated operating life of 5,000 hours.

SHANLING M7T Master dual JAN6418 tube audio stage — Tube and transistor modes add two distinct sound characters to the same music-player platform.

SHANLING M7T Master headphone amplifier with three gain settings — Three gain settings and precise volume control accommodate sensitive IEMs and larger headphones from the same device.

AMPLIFICATION FROM IEMS TO LARGER HEADPHONES

The amplification section uses an OP+BUF architecture built around two OPA2211, two MUSES8920 and four BUF634A components. The CPAF, Constant Phase in All Frequency, low-pass filter combines OPA2211 op-amps with Panasonic tantalum capacitors, while the tube stage adds Panasonic and Nichicon components.

In transistor mode, the 3.5mm output delivers up to 260mW and the 4.4mm balanced output up to 1020mW at 32 ohms on high gain. In tube mode, the corresponding specified figures are 220mW and 990mW. Output impedance is 0.4 ohms for the 3.5mm output and 0.8 ohms for the 4.4mm output.

3.5MM, TRANSISTOR MODE27mW, 180mW or 260mW at 32 Ω on low, medium and high gain.

4.4MM, TRANSISTOR MODE108mW, 710mW or 1020mW at 32 Ω on low, medium and high gain.

4.4MM, TUBE MODE88mW, 690mW or 990mW at 32 Ω on low, medium and high gain.

PORTABLE FORM, REFERENCE-CLASS FEEL

The M7T Master is machined from a single aluminium block with rounded edges and more ergonomic side contours. Measuring 129 × 77.5 × 21mm and weighing 319.8g, it combines front hardware controls and a volume wheel with a 5-inch Sharp touchscreen at 1080 × 1920 resolution.

The 441ppi display provides clear presentation of album artwork and streaming apps. The player is available in Galaxy Grey, Midnight Blue and Smooth Mocha. In addition to its headphone function, the 3.5mm socket can be used as a bit-perfect coaxial SPDIF output with a suitable digital coaxial cable, up to PCM 192kHz.

SHANLING M7T Master in Galaxy Grey Midnight Blue and Smooth Mocha — All three colour options share the single-piece aluminium chassis and 5-inch touchscreen.

SHANLING M7T Master portable player in three colour options — The frosted-glass top panel and engraved M detail are common identifiers across every M7T Master version.

OPEN ANDROID 13, LOCAL LIBRARY AND STREAMING

The open Android 13 system allows music-player and streaming apps to be installed directly. Shanling AGLO, Android Global Lossless Output, is designed to pass audio data from compatible applications to the audio architecture without unnecessary system resampling.

The eight-core Snapdragon 665 processor, 6GB LPDDR4X memory and 128GB UFS 2.1 storage provide a foundation for responsive Android app performance. The MicroSD slot supports cards up to 2TB, allowing a large high-resolution local music library to remain on the device.

SHANLING M7T Master with open Android 13 operating system — Android 13 brings local playback, streaming and music apps together on one portable interface.

SHANLING M7T Master with Snapdragon 665 processor 6GB RAM and 128GB storage — The Snapdragon 665 platform, 6GB RAM and 128GB internal storage support Android operation and music-library management.

SHANLING M7T Master with 2.4 and 5GHz Wi-Fi connectivity — The Qualcomm WCN3980 wireless module provides 2.4GHz and 5GHz Wi-Fi connectivity with MIMO technology.

SHANLING M7T Master two-way Bluetooth 5.0 connectivity — Bluetooth operates as a transmitter for wireless headphones or speakers and as a receiver for a phone or tablet Bluetooth DAC connection.

TWO-WAY BLUETOOTH AND MULTIPLE DIGITAL ROLES

In Bluetooth transmitter mode, the M7T Master can send its local or streamed music to wireless headphones or speakers. Supported transmitter codecs include LDAC, aptX, AAC and SBC; the manufacturer's presentation also lists aptX HD support.

In Bluetooth receiver mode, a phone or tablet can send audio wirelessly to the M7T Master, which then serves as a portable Bluetooth DAC and headphone amplifier. Receiver mode supports LDAC and SBC. USB DAC mode also allows connection to a computer or compatible mobile device.

7000MAH BATTERY WITH FAST CHARGING

According to the manufacturer's measurements, the 7000mAh battery provides up to 14.5 hours of playback from the 3.5mm output or 12.5 hours from the 4.4mm output on one charge. In Bluetooth transmitter mode with LDAC Adaptive, the specified operating time can reach up to 66 hours.

The M7T Master supports up to 18W fast charging through its USB-C port with QC3.0 and PD2.0 standards. Actual battery life depends on the selected output, volume, network connection, applications and the type of files being played.

SHANLING M7T Master 7000mAh battery and playback times — The high-capacity battery is sized for the power requirements of the full Android system and high-output amplification stage.

SHANLING M7T Master during portable music listening — The full Android interface and headphone amplifier combine a portable source and audio electronics in one device.

SHANLING M7T Master in a desktop and portable audio system — Its line outputs and digital coaxial output also allow the M7T Master to serve as a source in a larger audio system.

WHERE DOES THE M7T MASTER SIT IN THE SHANLING M SERIES?

The Shanling M series ranges from extremely compact Wi-Fi players through Android-based streaming models to the reference class. The M7T Master represents the upper reference tier, pairing an open Android 13 platform with dual AKM conversion, separate tube and transistor modes, and substantial balanced output power.

The table is not a quality ranking. These models represent different size, control and system concepts, so the desired platform, portability, headphone output and audio functions all matter when comparing them.

Model	Platform and size concept	Audio approach	Place in the M series
M1 Plus	Extremely compact Wi-Fi music player	Portable, simpler music-player hub	Entry point to Shanling portable network players
M3 Ultra	Compact Android-based player	Full app and streaming functionality in a smaller chassis	Mid-range Android model
M3 Plus Master	Further refined compact Android model	Smaller M3 concept with refined tuning	Compact Master edition
M5 Ultra	Dedicated MTouch music player	App-independent, focused local and network music playback	Purpose-built music-player platform without Android
M7T Master	Open Android 13, 6GB RAM, 128GB storage	2 × AK4498EX + AK4191, JAN6418 tube or transistor mode, up to 1020mW	Versatile upper reference-class portable player
M8T	Larger flagship Android platform	Portable approach with tube architecture and higher-tier design	Flagship of Shanling portable music players

On mobile, the table can be scrolled horizontally. Current model availability and configurations may vary by region.

SPECIFICATIONS

PRODUCT TYPE

Open Android portable music player, USB DAC and Bluetooth DAC/amplifier

DAC SYSTEM

AKM AK4191 modulator + 2 × AK4498EX digital-to-analogue converters

TUBE STAGE

2 × JAN6418, selectable tube sound mode, estimated 5,000-hour life

AMPLIFIER ARCHITECTURE

2 × OPA2211, 2 × MUSES8920, 4 × BUF634A, OP+BUF architecture

SYSTEM

Open Android 13, Shanling AGLO

PROCESSOR AND MEMORY

Qualcomm Snapdragon 665, 6GB LPDDR4X RAM, 128GB UFS 2.1 storage

EXPANDABLE STORAGE

MicroSD card slot, up to 2TB

DISPLAY

5-inch Sharp touchscreen, 1080 × 1920 pixels, 441ppi

LOCAL PLAYBACK

Up to PCM 768kHz/32-bit and DSD1024

USB DAC

Up to PCM 384kHz/32-bit and DSD256

HEADPHONE OUTPUTS

3.5mm single-ended and 4.4mm balanced

3.5MM OUTPUT, TRANSISTOR MODE

Up to 260mW at 32 Ω, 0.4 Ω output impedance

4.4MM OUTPUT, TRANSISTOR MODE

Up to 1020mW at 32 Ω, 0.8 Ω output impedance

4.4MM OUTPUT, TUBE MODE

Up to 990mW at 32 Ω

LINE OUTPUT

3.5mm: 2.4Vrms; 4.4mm: 4.8Vrms

DIGITAL OUTPUT

3.5mm coaxial SPDIF, up to PCM 192kHz

BLUETOOTH

Bluetooth 5.0, transmitter and receiver modes

WI-FI

2.4GHz and 5GHz, Qualcomm WCN3980, MIMO

BATTERY

7000mAh, USB-C charging, up to 18W QC3.0 and PD2.0 fast charging

SPECIFIED BATTERY LIFE

Up to 14.5 hours at 3.5mm, 12.5 hours at 4.4mm, 66 hours as Bluetooth transmitter

DIMENSIONS

129 × 77.5 × 21mm

WEIGHT

319.8g

CHASSIS AND COLOURS

Single-piece aluminium chassis; Galaxy Grey, Midnight Blue or Smooth Mocha

SHANLING M7T Master contents of the box — The package includes the USB-A to USB-C cable needed for basic use and screen protectors for the display.

WHAT IS IN THE BOX?

The M7T Master includes a USB-A to USB-C cable, documentation and two screen protectors. One protector is applied at the factory, while the second can be kept as a spare.

Cables required for the 3.5mm coaxial digital connection and for connecting 4.4mm or 3.5mm headphones should be selected separately for the chosen system.

SHANLING M7T MASTER

1 × portable Android music player

USB CABLE

1 × USB-A to USB-C cable for charging and data connection

SCREEN PROTECTION

2 × screen protectors, one of which is pre-applied at the factory

DOCUMENTATION

Manufacturer user and warranty documentation

Manufacturer

Shanling

Exact color

Blue

Model

M7T Master

Bluetooth

Yes

EAN

6972835394293

Item number

SH-M7T-MSTR-BLUE

Weight

650 g/piece
