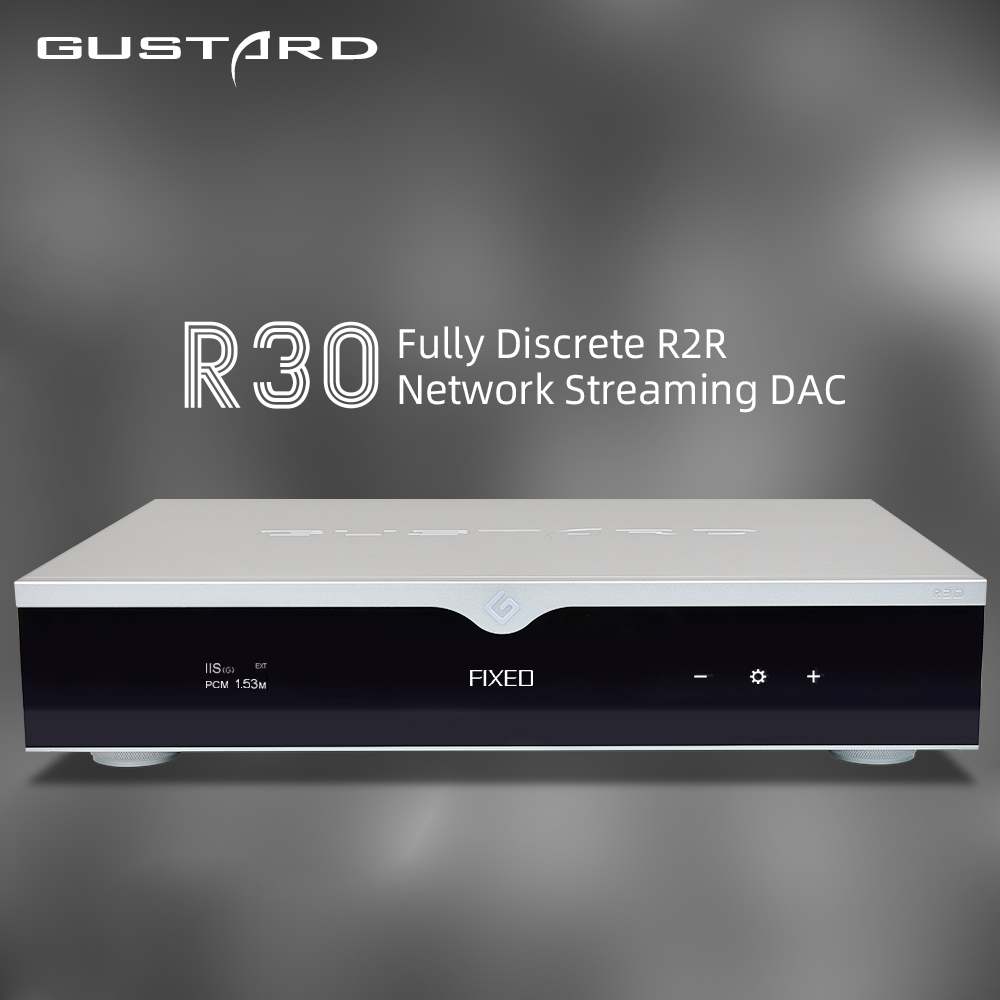

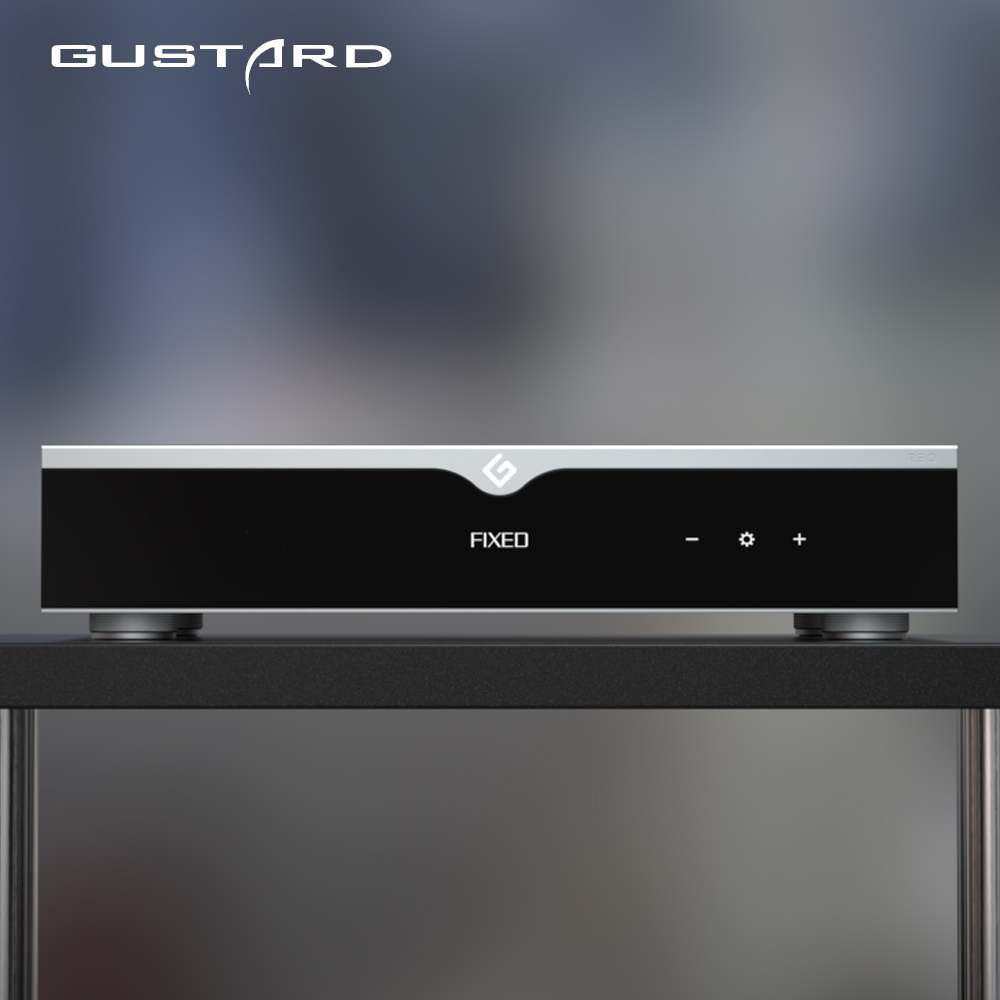

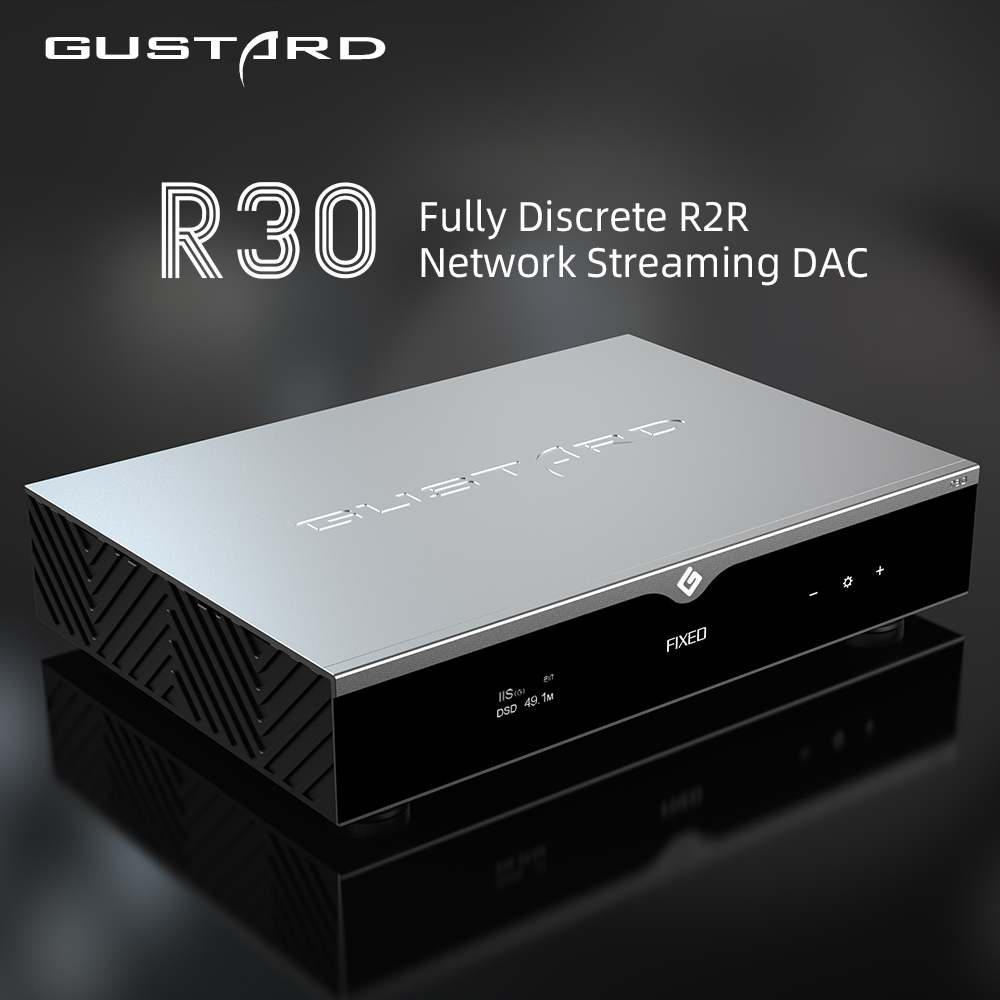

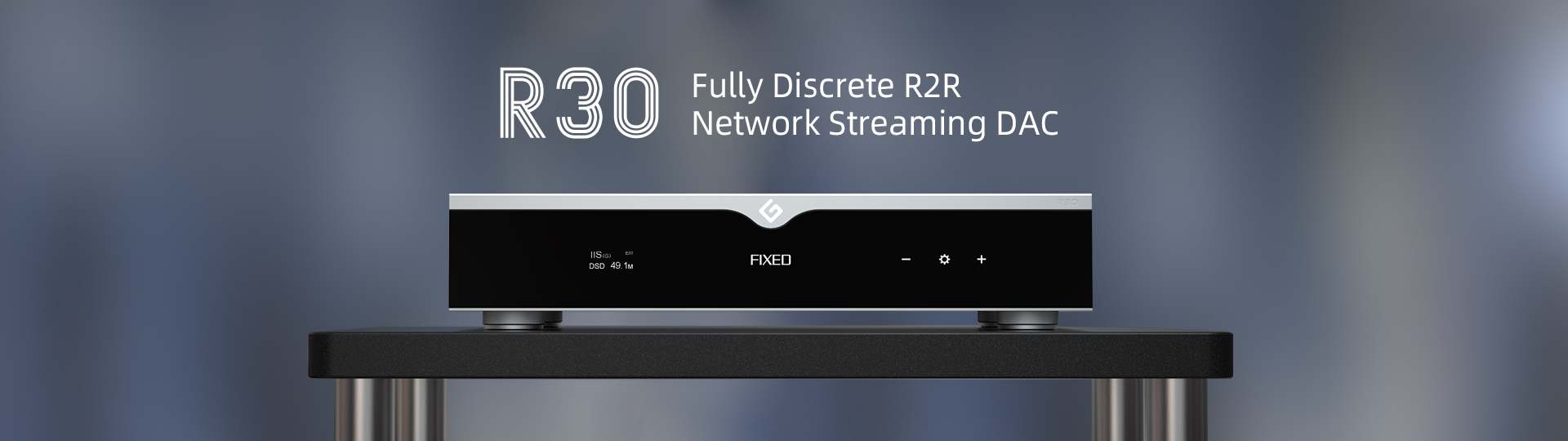

The Gustard R30 represents the pinnacle of modern digital-to-analog conversion, combining state-of-the-art engineering, innovative proprietary technologies, and meticulous craftsmanship to deliver an uncompromising listening experience. At its heart lies a self-designed discrete R-2R ladder DAC module, an approach chosen for its purity and directness in digital-to-analog signal conversion. Unlike the high-frequency 0-1 switching method used in common delta-sigma DACs, the R-2R ladder architecture translates digital signals into analog through precision resistor network switching. This method yields a far more natural and organic sound, with an unmistakable sense of tonal authenticity. However, its demands are extraordinary—requiring resistors of ultra-tight tolerances and highly rigorous design execution, making it both technically challenging and costly. Gustard has overcome these hurdles with immaculate workmanship, clean circuit layout, and robust material choices to ensure peak performance.

The R30 features advanced digital filtering technology, built on a dedicated high-performance hardware processing architecture. Employing multi-order adaptive algorithms, it intelligently upsamples digital audio while performing precision noise shaping. This effectively eliminates in-band aliasing distortion—common in traditional conversion—resulting in vastly improved resolution, dynamic range, and overall clarity.

Users can select between three proprietary digital filter modes to tailor playback to their preferences:

Linear Sharp Filter – delivering exceptional resolution with steep roll-off, razor-sharp transient response, crystalline highs, articulate mids, and tightly controlled bass. Perfect for complex genres like electronic and symphonic works where layering and detail are paramount.
Minimum Slow Filter – minimizing pre-ringing and optimizing decay for a smoother, more natural presentation. It emphasizes midrange density and nuanced highs, ideal for acoustic and vocal-focused recordings.
Super Slow Filter – an ultra-gentle approach that eliminates nearly all ringing, imparting a warm, analog-like quality reminiscent of vinyl and tube amplification. Its sonic character shines with vintage recordings, jazz, and classical music requiring lush musicality over analytical precision.

FPGA-Driven Control & Signal Processing

At the digital core, a powerful FPGA programmable logic chip orchestrates critical functions, including clock management, secondary PLL-based digital shaping, DOP demodulation, and PCM/DSD signal switching. This self-defined hardware logic ensures not only future-proof adaptability but also lays a robust foundation for the R30’s extraordinary sonic performance.

Discrete Class-A Analog Stage & Preamplifier

Post-conversion, the signal passes through a meticulously designed discrete Class-A low-pass filter (LPF) circuit, optimized specifically for the R-2R ladder DAC. Unlike integrated op-amps, this approach allows each transistor, resistor, and capacitor to be individually tuned for frequency response and tonal refinement. The result is greater freedom in voicing the DAC, enabling nuanced harmonic shaping, transient control, and thermal stability management.

The R30 also integrates a relay-controlled passive analog preamplifier, offering lossless R-2R volume adjustment with bypass capability. This allows direct connection to power amplifiers or active monitors, enabling simplified yet uncompromised system integration.

High-Quality Power Supply

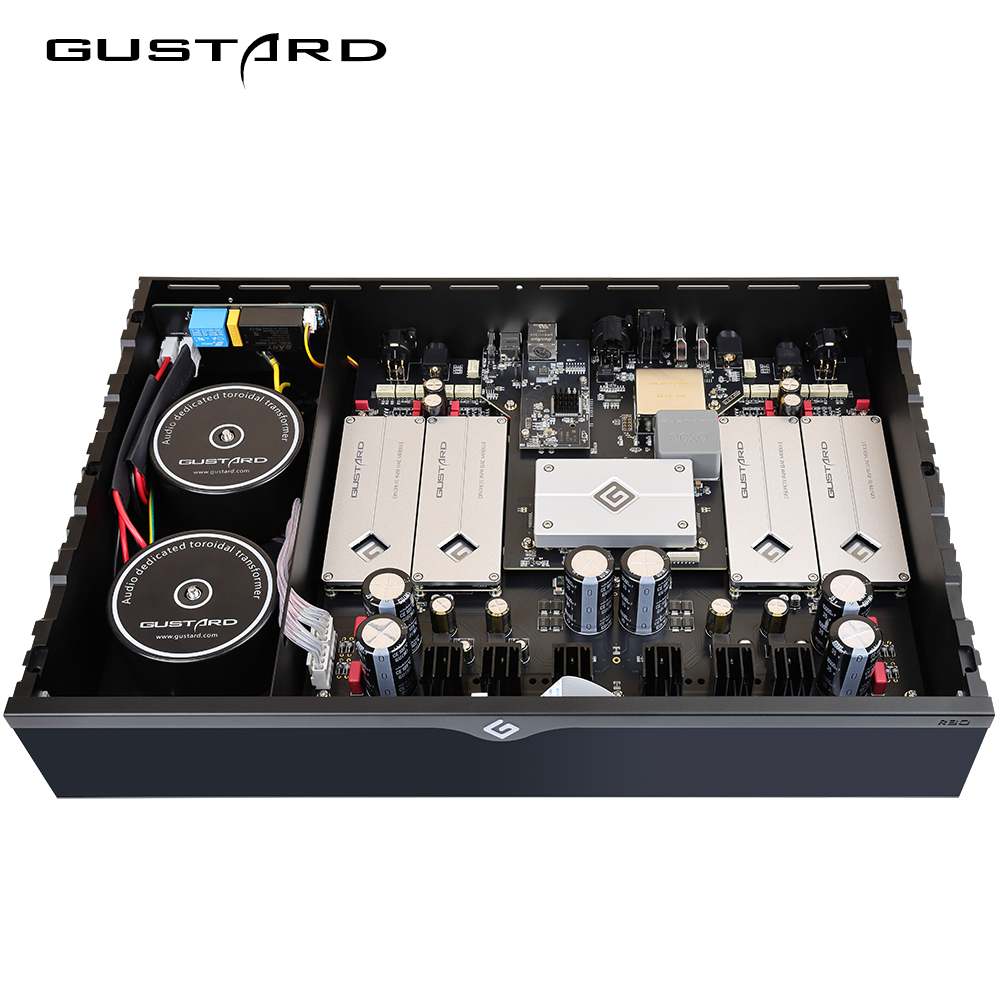

Power delivery is critical, and the R30 employs a dual-toroidal transformer linear power supply, isolating the digital and analog sections completely. This ensures zero interference between circuits and maintains ultra-low noise operation, enhancing both dynamics and background blackness.

In collaboration with CelWare, Gustard has engineered a dedicated network bridge system exclusively for music playback. Stripped of all non-audio components, it operates on a streamlined Linux kernel optimized for low-latency, hardware-prioritized audio forwarding. Its software layer allows disabling non-essential services, ensuring that every bit of processing power is devoted to sonic performance.

The R30 supports a wide array of network protocols, including Roon Ready, AirPlay, UPnP, NAA, and Spotify Connect, with management via a simple web interface. One-click firmware updates keep the system current with ease.

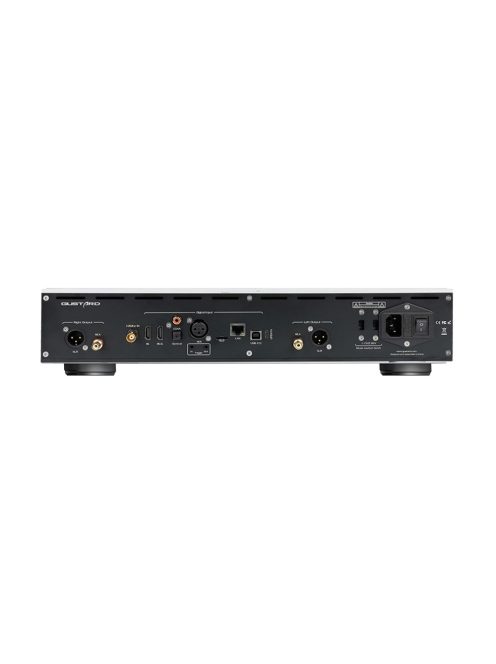

Digital Inputs

LAN (100/1000Mbps), IIS (two inputs, one Gustard fixed protocol, one adjustable), BNC external clock input

Supported Formats

PCM up to 1536kHz, DSD up to DSD1024

Analog Outputs

RCA: 2.5Vrms, 100Ω output impedance
XLR: 5.1Vrms, USA-standard pinout

Physical Design & Build

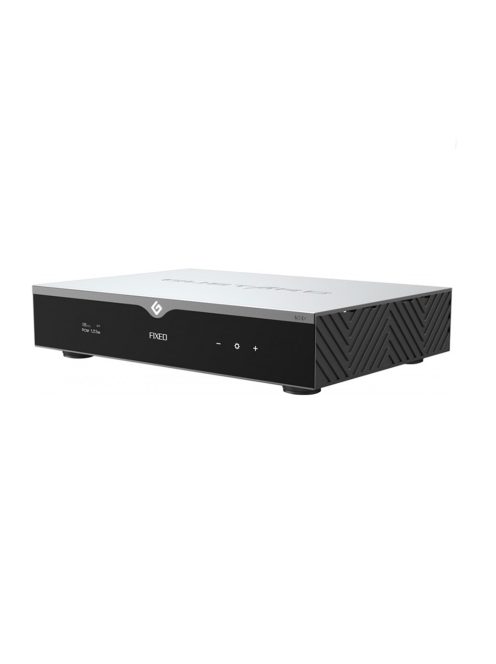

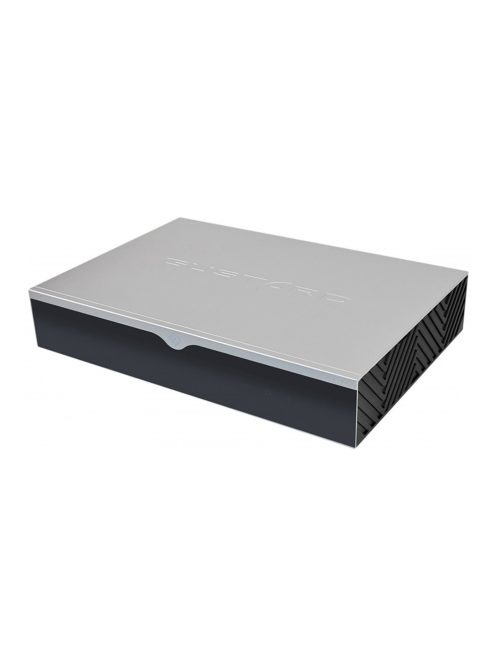

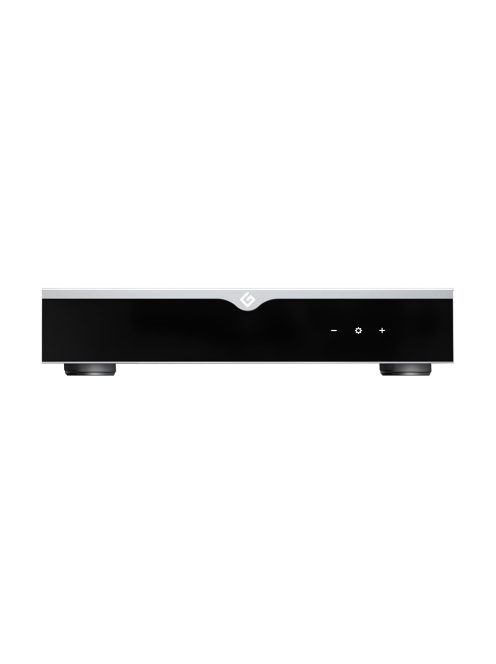

The R30 is housed in a precision-engineered chassis measuring 430 × 300 × 80mm (94mm with feet), with a shipping weight of 10kg. The design embodies Gustard’s reputation for clean, robust workmanship, providing both aesthetic elegance and structural durability. Power consumption is rated under 35W, with support for 115V/230V 50/60Hz mains.

The Listening Experience

The Gustard R30 is more than just a DAC—it is an audio system centerpiece. From the uncompromising resistor ladder DAC to precision clocking, FPGA-driven control, advanced digital filters, and refined Class-A analog output stage, every component is optimized for natural, dynamic, and emotionally engaging sound reproduction. Whether revealing micro-details in a symphony, delivering the raw punch of electronic beats, or infusing jazz and rock with warm analog-like timbre, the R30 adapts seamlessly, offering both clinical accuracy and musical soul.
