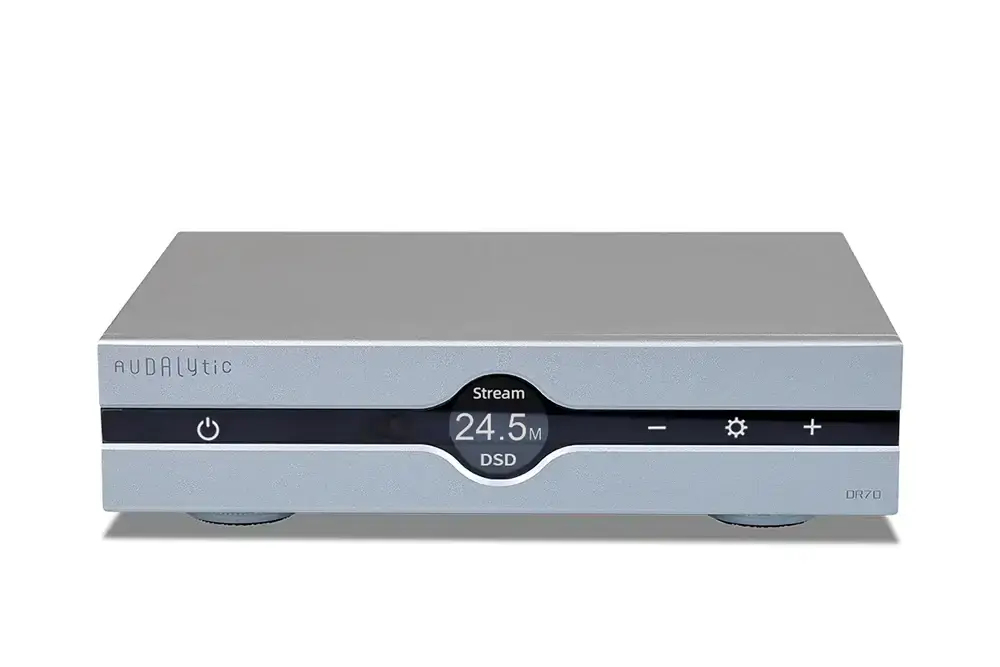

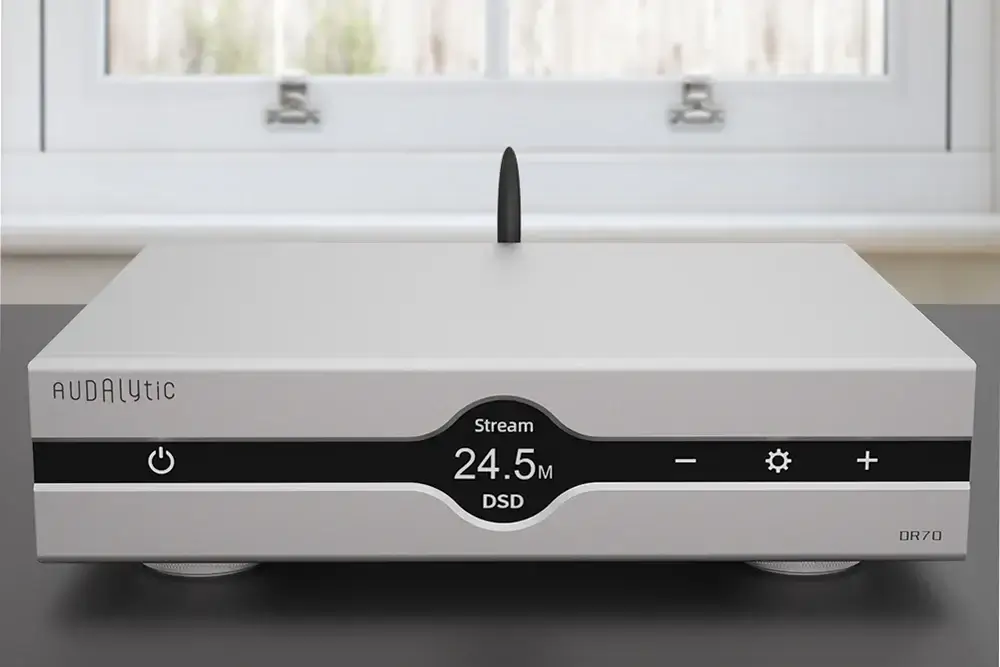

The AUDALYTIC DR70 is a compact desktop R‑2R DAC designed as a dedicated digital-to-analog converter for external digital sources. It utilizes a discrete resistor ladder architecture, enhanced by FPGA-based digital processing and native DSD support, ensuring accurate and direct signal handling. Separate analog and digital power supply sections, combined with precise clock management, provide stable operation, while Bluetooth connectivity and multiple input options allow flexible integration into a wide range of hi-fi audio systems.

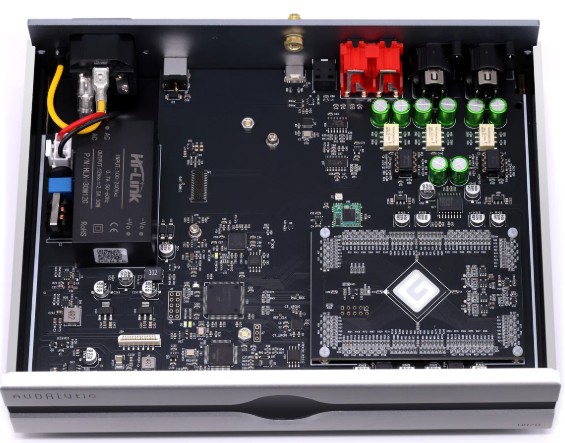

At the core of the DR70 is a custom-developed discrete R‑2R DAC design that enables direct and precise digital-to-analog conversion without relying on standard integrated chip solutions. Digital signal processing is handled by an FPGA circuit optimized specifically for the device, while native DSD playback is achieved through a dedicated 1-bit conversion stage. System stability and timing accuracy are supported by the CK01 femtosecond clock module. Via USB, the DAC supports up to 32-bit / 768 kHz PCM and DSD512 formats, while SPDIF and optical inputs handle up to 24-bit / 192 kHz signals. Connectivity includes USB-C, coaxial, optical, and Bluetooth 5.0 inputs, alongside simultaneously active balanced XLR and RCA outputs.

The AUDALYTIC DR70 is an ideal choice for users seeking a high-performance standalone DAC to complement existing digital sources such as computers, streamers, or CD transports. It is particularly well suited for hi-fi and audiophile systems where precise signal transmission, native DSD capability, and the distinct characteristics of discrete R‑2R conversion are important. It also appeals to those who want to combine flexible connectivity and modern features with a classic DAC architecture while maintaining a modular and upgrade-friendly audio system.
